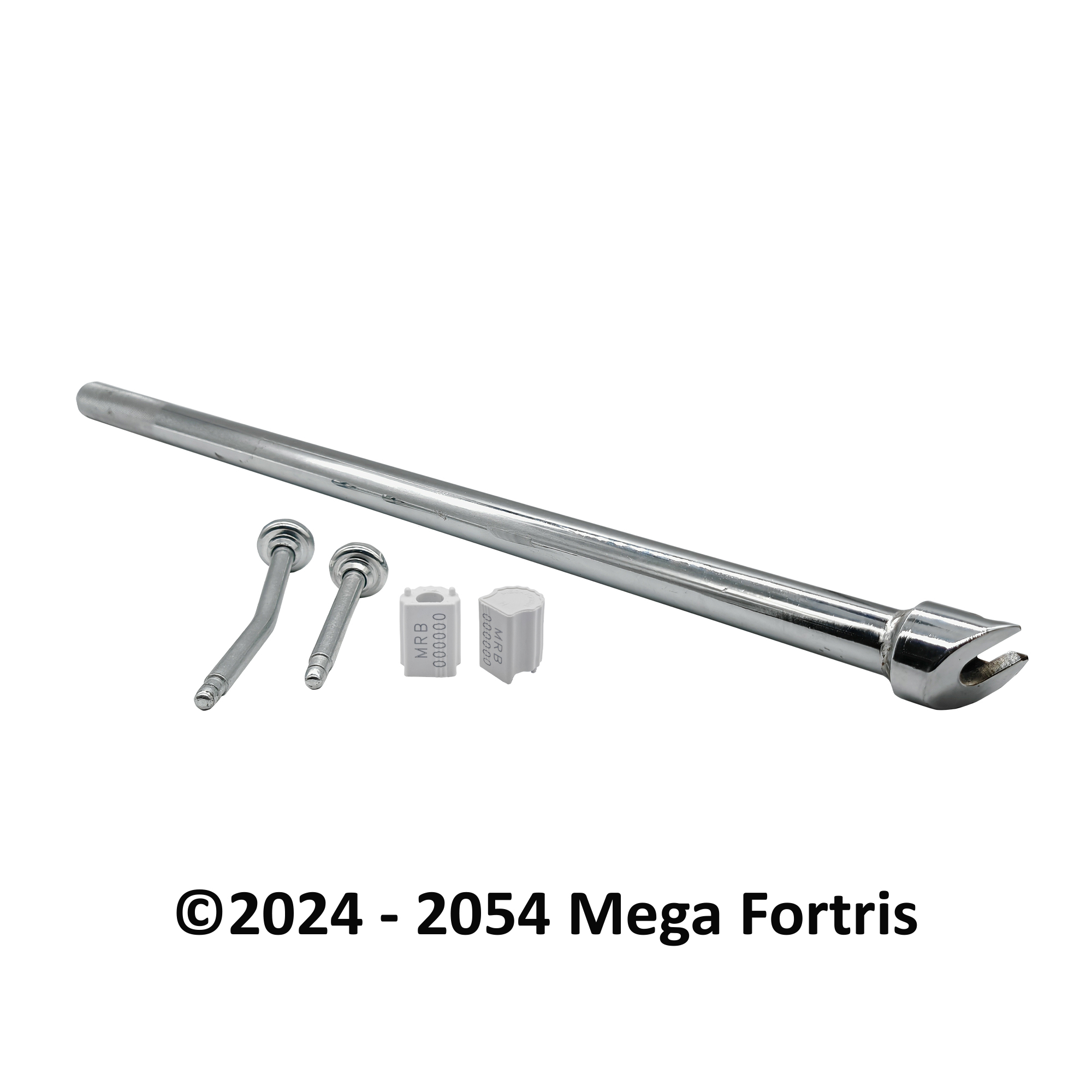

Mega Rail Bolt (MRB) + Breaker Bar

The Preferred Bolt Seal for the Rail Industry

The Mega Rail Bolt is popular in the automotive industry as it is widely used to secure multi-level autoracks and high-cube boxcars that often transport auto parts. It cannot be removed by a standard bolt cutter and requires a specially designed breaker bar for easy and safe removal, offering strong resistance to tampering.

To provide eco-conscious solutions on a wide array of applications, all Mega Fortris’ security seal product lines with plastic content will include the BioSphere bio-additive from 13th May 2024.

Description

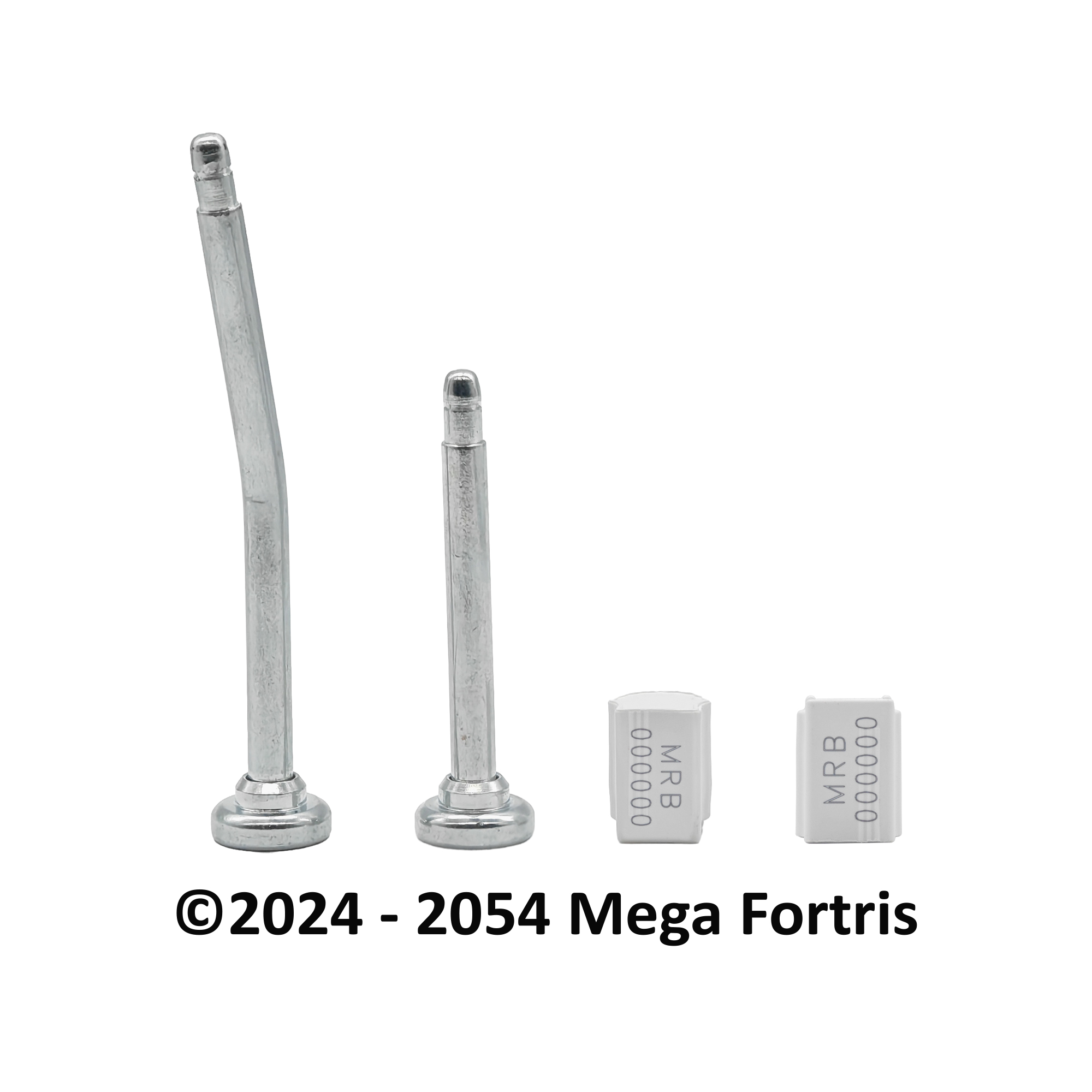

1. The pin and bush of the Mega Rail Bolt are made of high-carbon steel which gives better strength and added security.
2. The pin is angled to facilitate applications on boxcars and multi-level autoracks. The pin is available in angled or straight option for various applications and requirements.
3. The bush can be moulded with High-impact Polypropylene.
4. Irreversible identifiers such as name, logo, barcode, serial number and QR code are laser-marked on the bush for higher security.

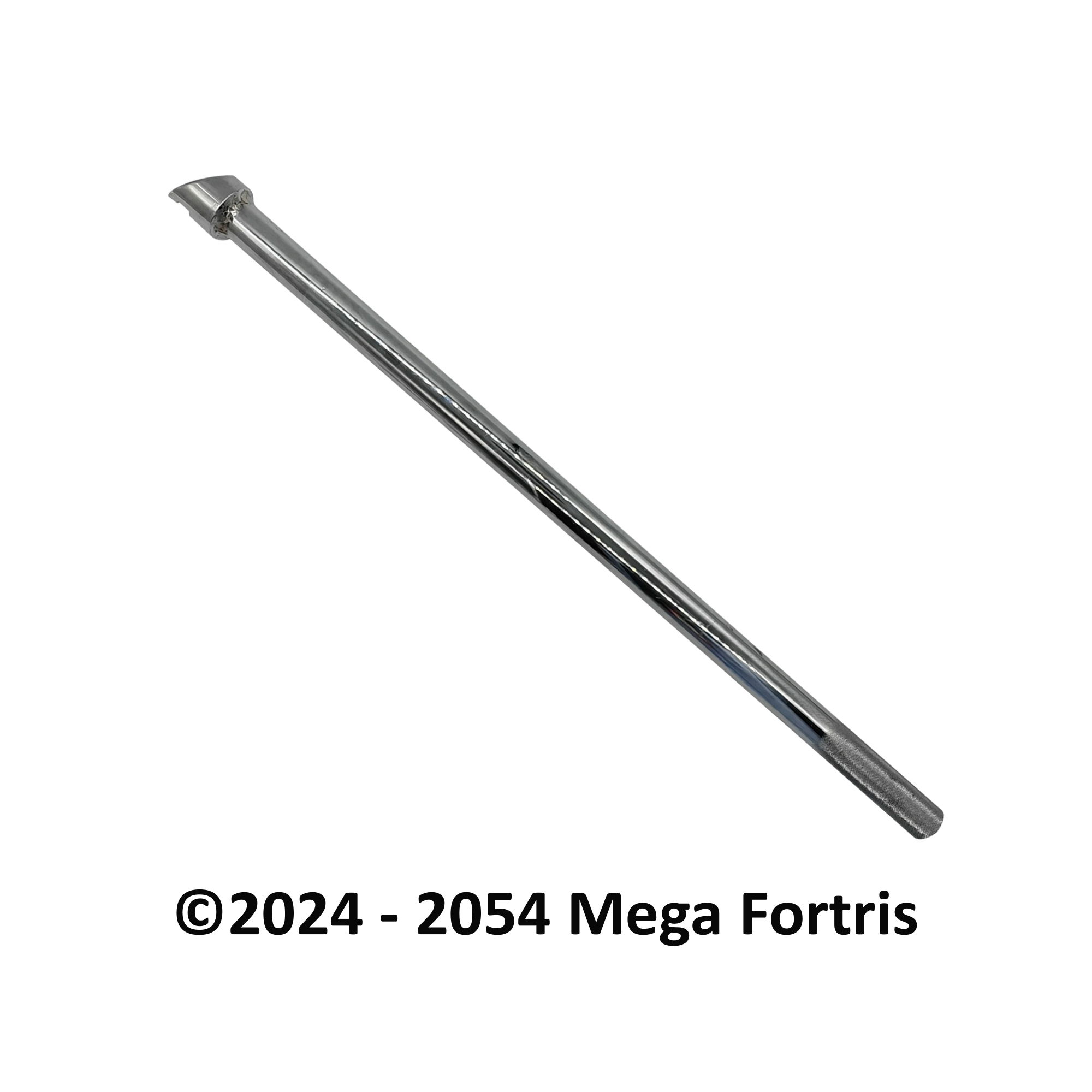

5. A breaker bar or electric grinder is required to remove the bolt. The steel bolt is too hard to be removed by regular bolt cutters. The breaker bar can be used repeatedly. Once there’s a sign of wear and tear, it has to be changed or replaced.
6. These seals include the BioSphere bio-additive

Product Application

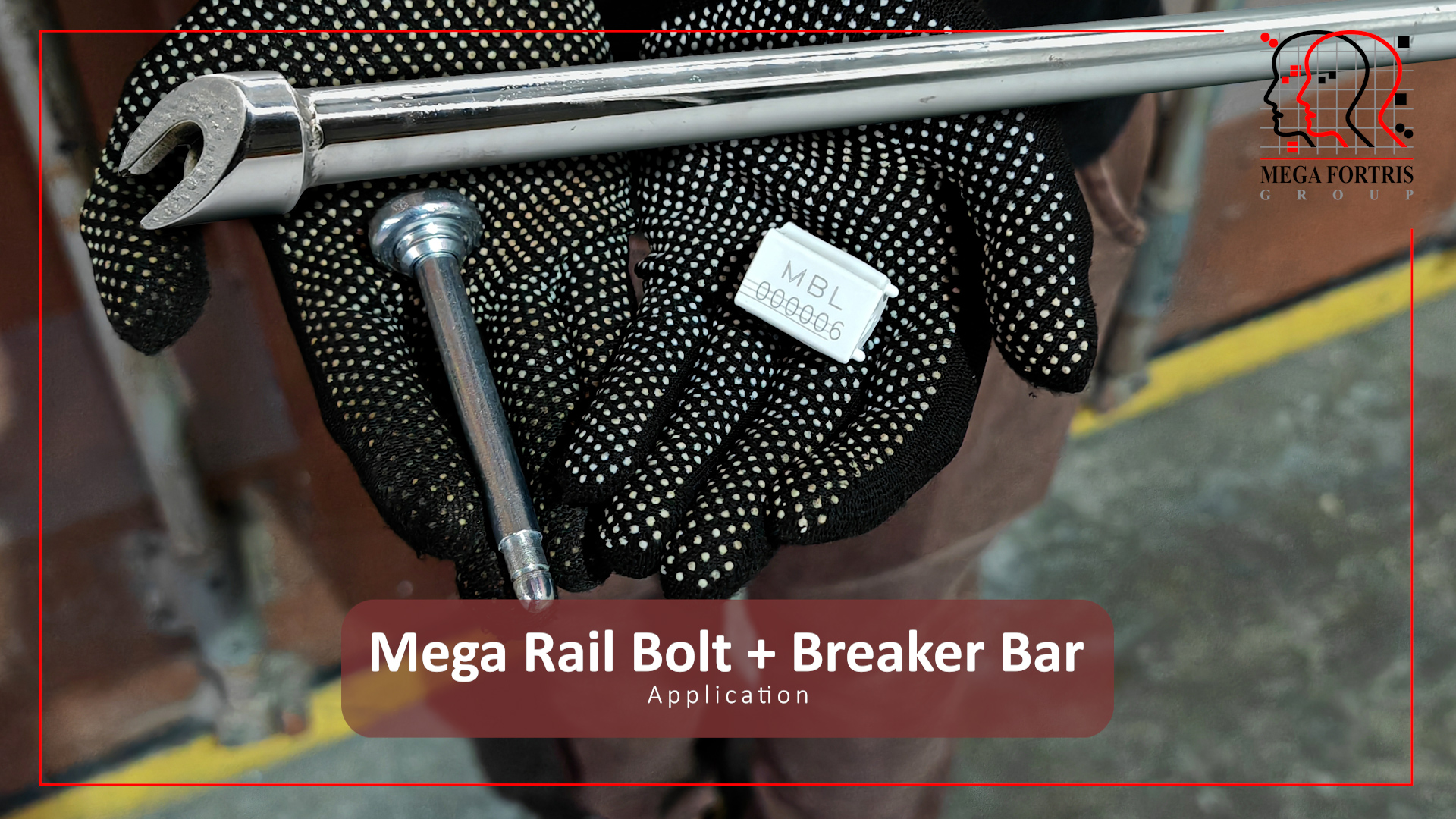

Mega Rail Bolt + Breaker Bar

VIEW VIDEO

Packaging Weight and Dimensions

Weight N/A
Dimensions N/A

Datasheet

DOWNLOAD DATASHEET

Certificates

Additional Information

Tensile Strength (kgf): >=1000
